Pin Gauges LLDSIMEX Precision Hole Diameter Measurement

Description

Product Overview

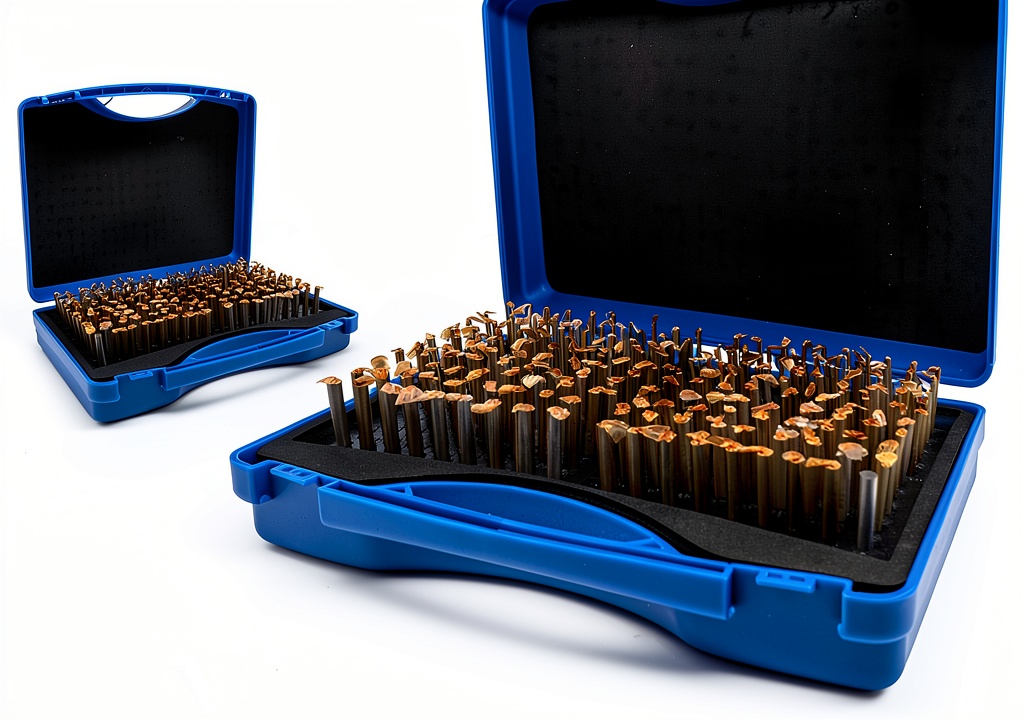

LLDSIMEX pin gauges represent professional-grade measurement tools designed for accurate hole diameter verification and dimensional inspection. This comprehensive set includes 190 individual pins covering sizes from 0.061 to 0.250 inches, with each piece featuring electro-etched size markings for clear identification. Manufactured from high-grade steel heat-treated to 60/62 RC hardness, these gauges maintain dimensional stability and wear resistance. The complete set maintains a consistent .0002 minus tolerance across all pieces, ensuring reliable measurement repeatability. With an overall length of 2 inches and centerless lapped construction, these gauges provide optimal handling characteristics for precision measurement applications in industrial environments.

Usage

These precision pin gauges serve critical functions in manufacturing quality control, mechanical engineering, and production line verification processes. Primary applications include checking hole diameters for compliance with engineering specifications, verifying distances between multiple holes in assembly components, and confirming hole location accuracy in machined parts. The gauges are particularly valuable in automotive manufacturing, aerospace component production, and precision machinery workshops where dimensional accuracy directly impacts product performance and safety. Quality control technicians, mechanical engineers, and manufacturing inspectors represent the core user base, relying on these tools for rapid, accurate dimensional verification during production processes and final quality audits.

Why Choose Us

LLDSIMEX pin gauges distinguish themselves through exceptional manufacturing precision and material quality. The heat treatment process achieving 60/62 RC hardness ensures superior wear resistance and long-term dimensional stability, significantly extending tool lifespan compared to standard gauges. Centerless lapping manufacturing creates perfectly cylindrical surfaces free from distortion, providing consistent measurement contact across the entire gauge surface. Each piece undergoes individual tolerance verification to maintain the strict .0002 minus specification, delivering measurement reliability that meets industrial standards. The comprehensive size range covering 190 individual measurements offers complete coverage for common industrial hole sizing requirements, eliminating the need for multiple gauge sets.

Key Features

• Complete 190-piece set covering 0.061 to 0.250 inch measurement range
• Heat-treated construction achieving 60/62 RC hardness for durability
• Strict .0002 minus tolerance maintained across all gauge pieces

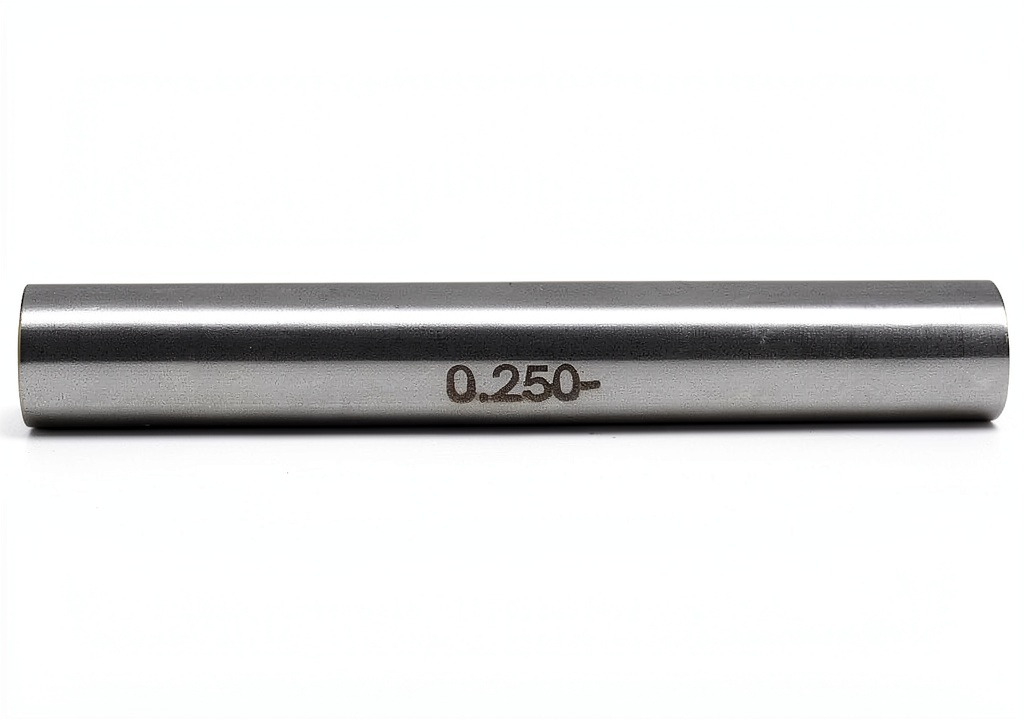

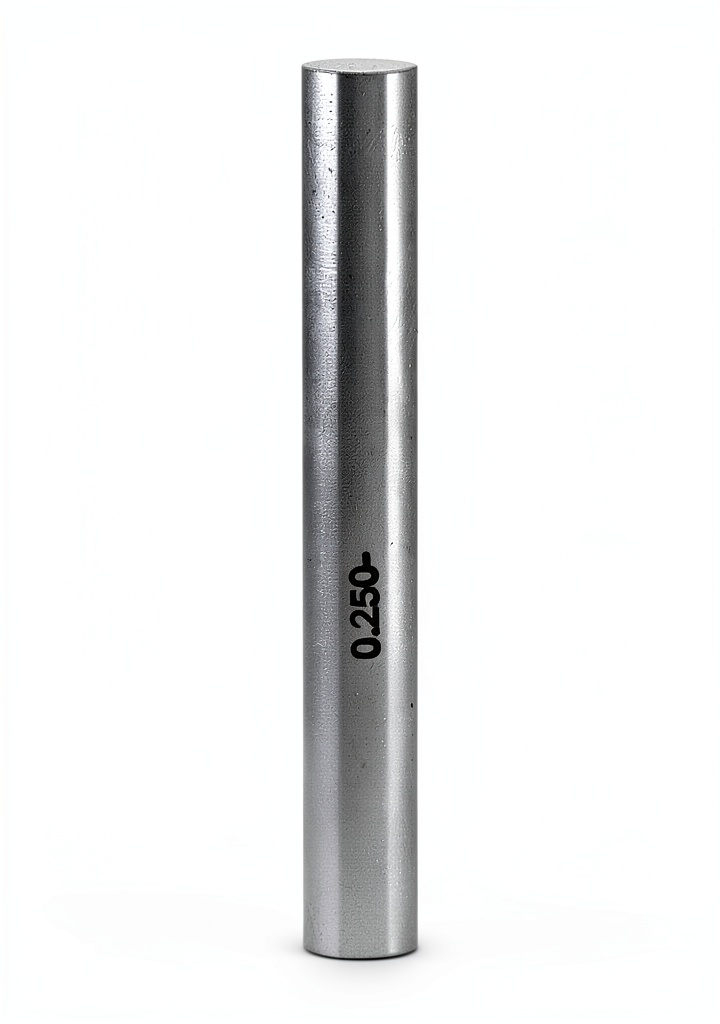

• Electro-etched size markings for clear, permanent identification
• 2-inch centerless lapped design for optimal handling and measurement

FAQ

What materials are used in these pin gauges?

The gauges are manufactured from high-grade tool steel that undergoes heat treatment to achieve 60/62 RC hardness, providing excellent wear resistance and dimensional stability for long-term accuracy.

How should I store and maintain these precision gauges?

Store in the provided protective case when not in use, avoid exposure to corrosive environments, and periodically clean with appropriate solvents to maintain measurement accuracy and prevent contamination.

What industries commonly use these measurement tools?

These pin gauges are essential in automotive manufacturing, aerospace component production, precision machining, and general industrial quality control where accurate hole measurement is critical.

Can these gauges be used for go/no-go testing?

Yes, the .0002 minus tolerance specification makes these gauges ideal for go/no-go testing applications where precise dimensional verification determines component acceptance or rejection.

What is the significance of centerless lapped construction?

Centerless lapping creates perfectly cylindrical surfaces without distortion, ensuring consistent contact with measured surfaces and eliminating measurement errors from irregular gauge geometry.
